SPECIFICATIONS

MONITOR SECTION

• Screen Size
: 7 inch
• LCD Type
: Transparent type TN LCD
• Operation System
: TFT active matrix

• Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB))
• Effective Number of Picture Elements
: 99% or more
• Illumination System: LED

TUNER SECTION

• FM Tuning Range
: 87.5 – 108.0 MHz

• AM Tuning Range: 531 – 1,602 kHz
• Signal-to-Noise Ratio
: 65 dB


USB SECTION

• USB requirements
: USB 2.0

• Max. Power Consumption: 1,000 mA (CDP Support)
• USB Class:  USB (Play From Device) / USB (Mass Storage Class)
• File System
: FAT16/32

• Dynamic Range
: 95 dB (at 1 kHz)

• Signal-to-Noise Ratio
: 100 dB


BLUETOOTH SECTION

• Bluetooth Specification: Bluetooth V4.2

• HFP (Hands-Free Profile)
•
PBAP (Phone Book Access Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)

GENERAL

• Power Requirement:   14.4 V DC
(11–16 V allowable)
• Operating temperature
:  -20 degree Celcius to + 60 degree Celcius
• Power Output
: 4 x 16 Watts RMS
• Weight
: 0.92 kg

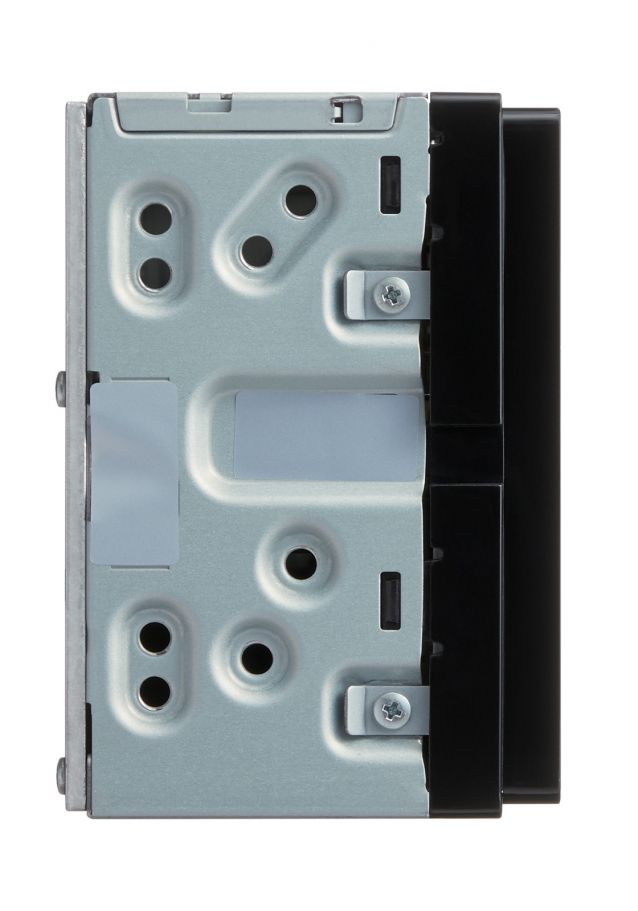

CHASSIS SIZE

• Width: 178 mm
• Height: 100 mm
• Depth: 60 mm
