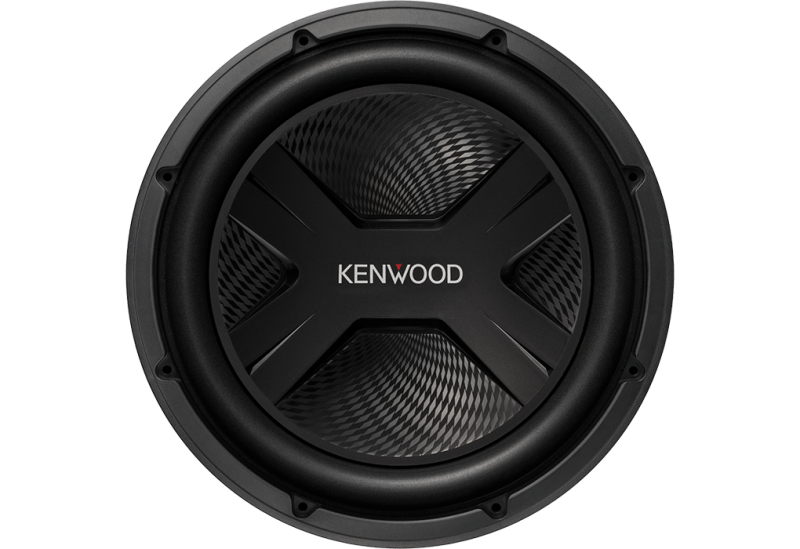

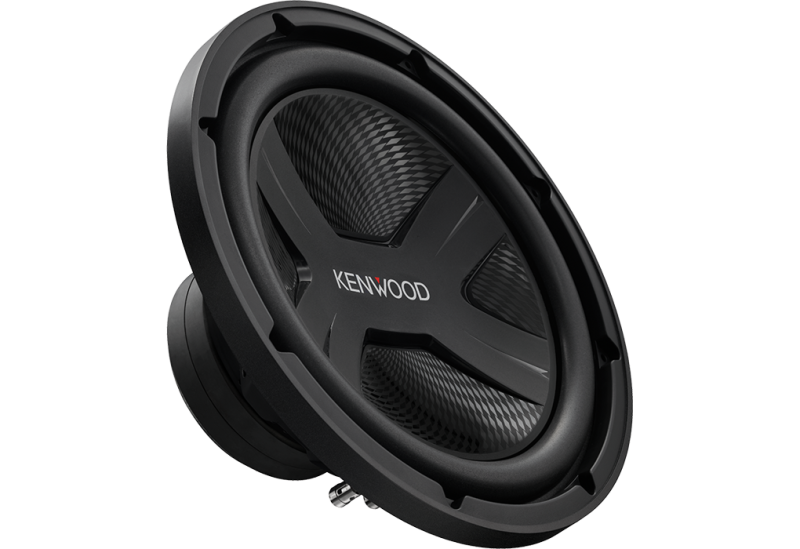

Kenwood KFC-PS3017W
30cm (12") Subwoofer
Peak Input Power - 2000W
Rated Input Power - 400W
- Brand: Kenwood
Quick Buy
Just 4 fields to fill in
Key Features
| 300mm Polypropylene Cone (PP Cone) |
| 400 Rated/RMS Input Power |
| High-ridged Two-piece Diaphragm for solid bass |
| X-motif cap Technology for resonance control |
| Single, multi-layered, voice coil. |
| Aluminum bobbin for better thermal conductivity |
| Airflow control for optimal heat radition |
| Stress controlled spider |
| Push-terminals for easy connection |
| Sealed/Ported installation capabillity |
Speaker Features
| Speaker Size | 300mm |
| Oversized Dimension | Yes |
| Speaker Cone Design | Diamond-Array pattern |
| Magnet Type | Ferrit |
| Voice-coil | single, multi-layer voice coil |
| Terminals | Push Type |
| Spider | Stress controlled spider |
| Bottom-Yoke | Fully closed bottom yoke |
| Heat dissipation technology | Airflow control |
| Installation Capabillity | Sealed / Ported |
Speaker/woofer Specifications
| Peak Input Power | 2000W |
| Rated Input Power | 400W |
| Woofer Cone material | Polypropylene (PP) Cone |
| Center Cap Type | x-motif cap |
| Speaker Basket | Steel |
| Speaker Surround | Foam |
| Spider Type | Stress controlled Spider |
| Sensitivity | 85dB/W/m |
| Frequency Response | 29Hz ~ 300Hz |
| Speaker Impedance | 4Ω |

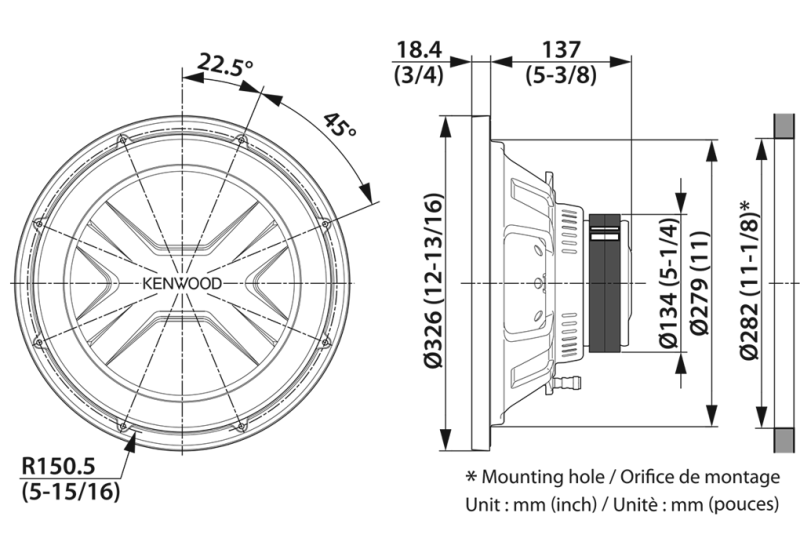

| Dimensions (W x H x D) | 326 x 326 x 155.4mm |
| Mounting Depth | 137mm |
| Mouting Hole Diameter Ø | 280mm |
| Speaker Weight | 4200gr |
Subwoofer Parameters
| Nominal impedance (Z) | 4Ω |
| DC resistance (Re) | 3.7Ω |
| Resonant frequency (FSO) | 24.4Hz |
| Mechanical Q factor (QMS) | 6.79 |
| Electrical Q factor (QES) | 0.52 |
| Total Q factor (QTS) | 0.483 |
| Voice coil inductance (LBM) | 2.04mH |
| Voice coil diameter (d) | 50mm |
| Force factor (BL) | 12.9T/m |
| Peak excursion Xmax | 5.9mm |
| Moving mass (MMS) | 152gr. |
| Volume accoustic compliance (VAS) | 104liter |
| Piston Area (SD) | 0.0512m² |
| Displacement | 1.2cc |
| Sealed box volume | 35.4liter |
| Sealed Box Dimensions | 457 x 362 x 299mm ( 18mm thick MDF)(WxHxD) |
| Vented box volume | 42.5liter |
| Vented Box Dimensions | 590 x 362 x 394mm ( 18mm thick MDF)(WxHxD) |
| Port dimensions (labyrinth) (W x H x L) | 35 x 324 x 736mm |
-
Max. Power:2000 W
-
RMS Power:400 W
-
Sensitivity:85 dB/W/m
-
Mounting Depth:137 mm
