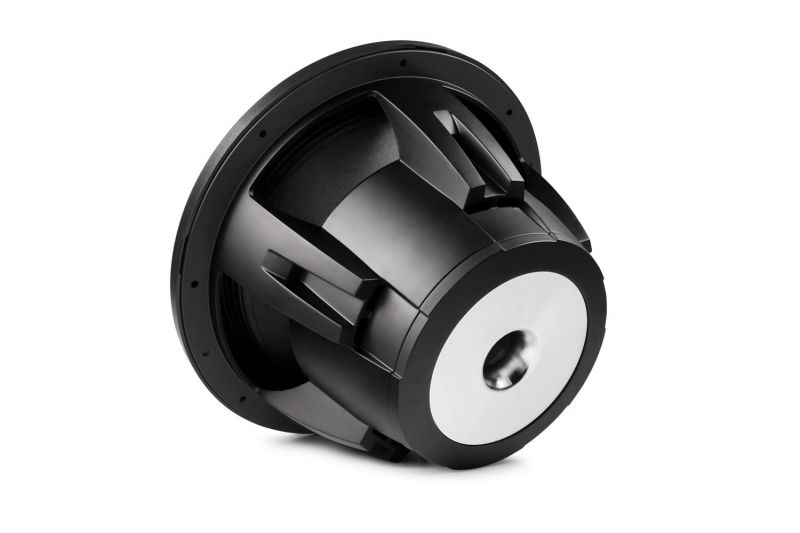

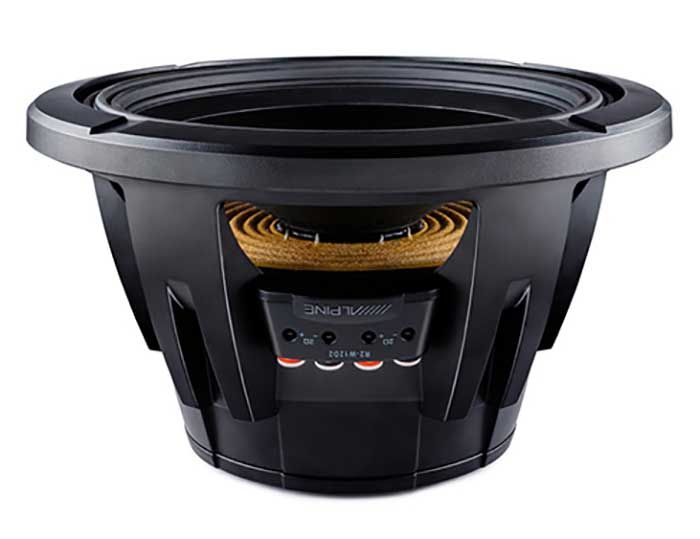

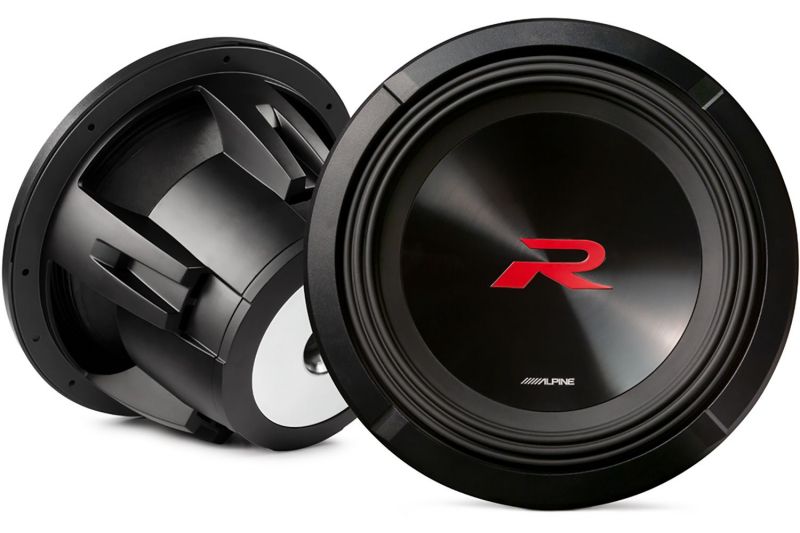

Alpine R2-W12D2
PRODUCT FEATURES:
New Motor Structure – The new R-Series subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control compared to the previous generation.
Oversized Dust Cap – The new hybrid poly ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass.
Increased Accuracy – Alpine’s High Amplitude Multi-Roll (HAMR) Surround Technology allows the cone to efficiently move air while staying cool resulting in incredible accuracy from the subwoofer.
PRODUCT SPECIFICATIONS:
- 30 cm (12") subwoofer with dual 2-ohm voice coils
- Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
- Frequency range: 24 - 200 Hz
- Power handling: 300 - 750W RMS (375W per coil)
- Maximum power: 2250W
- Sensitivity: 85 dB
- Top-mount depth: 6.43 inch
- Sealed box volume: 15.6 L - 28.3L (0.55 - 1.0 cubic feet )
- Ported box volume: 28.3 L - 42.5L (1.0 - 1.5 cubic feet)
-
Max. Power:2250 W
-
RMS Power:750 W
-
Sensitivity:85 dB/W/m
-
Mounting Depth:163 mm
| File | Info |
|---|---|
R2W12D2-spec_sheet
|
[PDF, 213.95 KB] |
