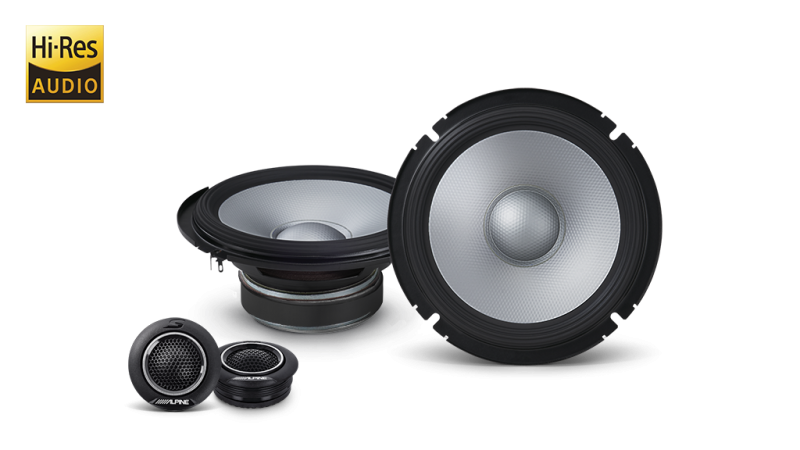

Alpine S2-S65C
S-Series 6-1/2 Inch 2-Way Hi-Res Audio Component Speaker System
- Brand: Alpine
Quick Buy
Just 4 fields to fill in
Features
Woofer
- 6.5″ (165mm) Lightweight Glass Fiber Composite Component Speaker
- HAMR (High Amplitude Multi-Roll) Surround
- Large 35mm Voice Coil
- Magnet Material: Strontium Ferrite
- Grill sold separately: KTE-S65G
Tweeter
- 1″ Extended-Range Soft Dome
- Magnet Material: Ferrite
- Application Type: External/Swivel Tweeter Mounting Kit
- Flush mount and Collapsable for OEM fit.
- Grill: Perforated Net
Crossover Network
- Woofer: Copper Air-Coiled Wound Inductor
- Tweeter: High Quality Audio-Grade Polycap
Specifications
Power Handling
- Peak Power: 240 Watts
- RMS Power: 80 Watts (CTA-2031 Compliant)

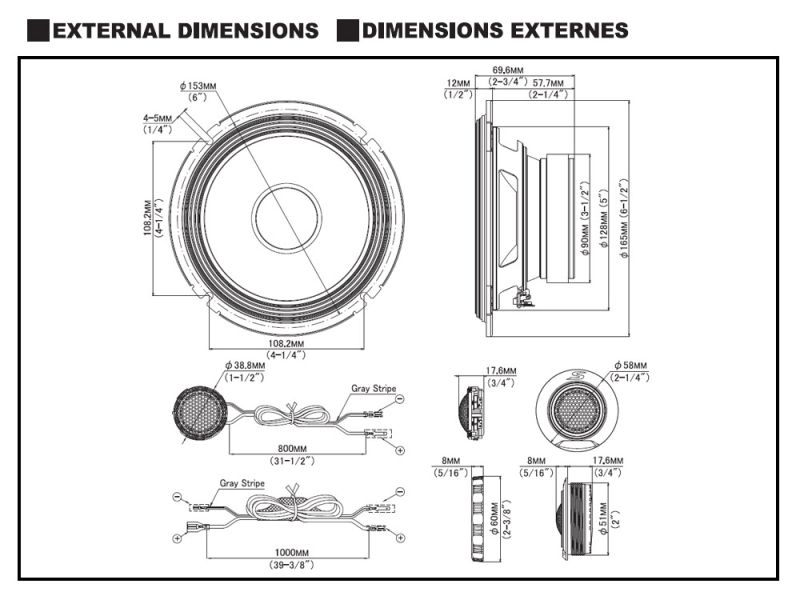

Dimensions Woofer
- Frame 165 mm
- Cutout Diameter: 129mm
- Mounting Depth: 57.7 mm
- Mounting Height: 12.0 mm
- Magnet: 90.0 mm
Dimensions Tweeter
- Frame: 58mm
- Mounting Diameter: 51mm
- Mounting Depth: 17.6mm
- Height: 25.6 mm
General
- Frequency Range: 55 Hz – 40 kHz
- Impedance: 4 Ohms
- Sensitivity: 88 dB/W
- Recommended Amplification: up to 80W RMS per channel
-
Design:2-way component system
-
Max. Power:240 W
-
RMS Power:80 W
-
Sensitivity:88 dB/W/m
-
Mounting Depth:57.7 mm
