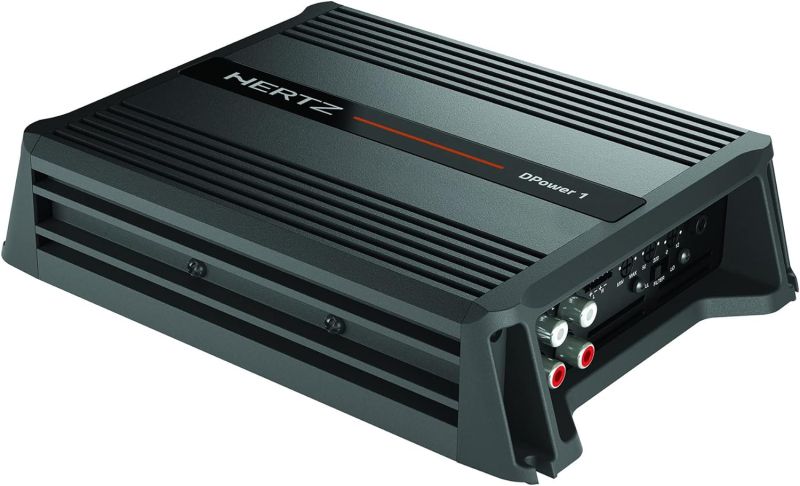

Hertz DPower 1

SPECIFICATIONS

• Channel 1
• Power supply voltage / fuse:  11 ÷ 15 VDC / 1 x 20 A
• Idling current (power ON/OFF) 1 A / 0.04 mA
• Consumption @ 2Ω, 14.4 VDC
• (Max Musical Power): 20 A
• Remote In: 4 ÷ 15 VDC - 1 mA
• ART™:  Automatic Remote Turn-On/Off
• Distortion - THD (100 Hz @ 4Ω): 0.1 %
• Bandwidth (-3 dB): 10 ÷ 500 Hz
• S/N Ratio (A weighted @ 1 V) 105 dB
• Damping factor (100 Hz @ 4Ω) 100
• Pre-In sensitivity: LO: 0.2 ÷ 5 V
• HI: 0.8 ÷ 20 V
• Load impedance (MIN) 2Ω
• Max size (mm/inches): 222,2 x 160 x 50,5 / 8.75 x 6.3 x 1.99
• Weight (kg/lb): 1.61 / 3.54
• Adjustable Crossovers yes

Output Power

• Output Power (RMS) @ 14.4 VDC, THD 1%:
• 150 W x 1 (4Ω)
• 250 W x 1 (2Ω)
• Output Power (RMS) @ 14.4 VDC, THD 10%:
• 180 W x 1 (4Ω)
• 300 W x 1 (2Ω)
• Total Power RMS 300 W

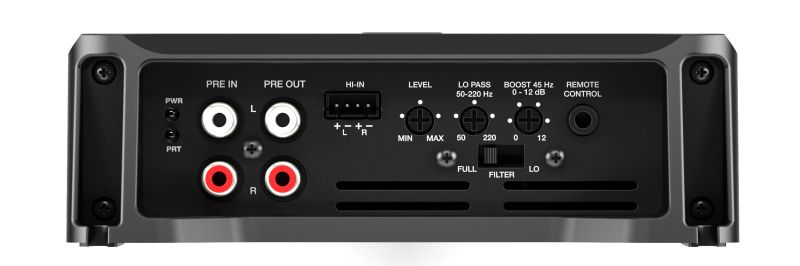

INPUTS / FILTERS

• Inputs: PRE IN / SPEAKER IN
• Pre out FULL range
• Filters FULL:
• Lo-Pass: 50 ÷ 220 Hz @ 12 dB/Oct
• BOOST 45 Hz:  0 ÷ 12 dB
• Remote Volume Control: (optional) (-20 ÷ 6) dB
