FEATURES
General

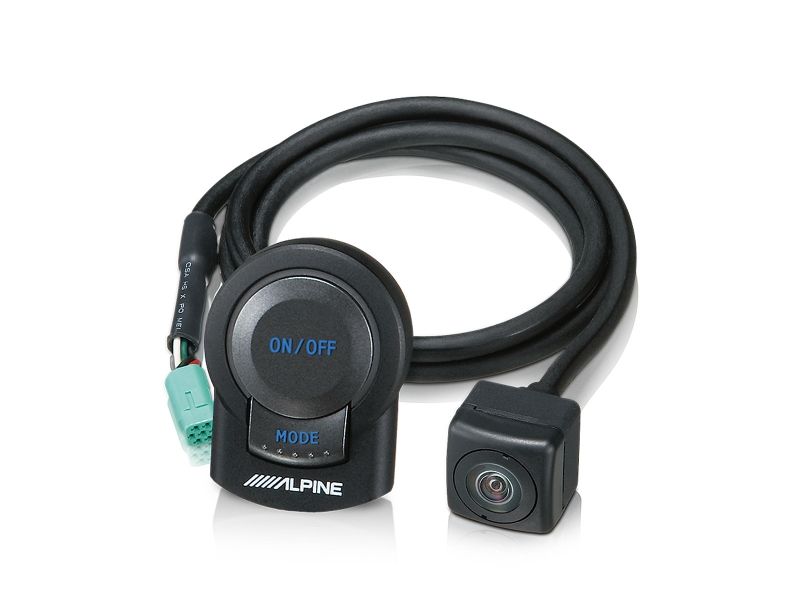

- Frontview Image
- RCA Video Signal (NTSC) Output
- Includes Control Switch
Image View
- Multi View Angle Selection: Panorama view, Corner view, Ground view
Camera
- Normal Image Output
- Colour CMOS Image Sensor
- Automatic Exposure Adjustment
- Automatic White Balance Adjustment
- Internal Synchronization
SPECIFICATIONS
Dimensions
- Camera: 23.4x23.4x21.3mm (except projection on the back)
- Box Unit: 100x50x25mm (except projection area)
General
- Power Requirement: 14.4V DC（11 to 16V allowable）
- Ground Type: Negative Ground
- Max. Power Consumption: 1.7W
- Operating Temperature (Box Unit): -30°C - +80°C
- Weight (Camera): 70g (including cable)
- Weight (Box): 270g (including cable)
Camera
- Output Image: Normal image, CVBS (NTSC Video signal) 16:9 Image output for wide-screen
- Output Drive Capacity: 75 Ohms (1Vp-p)
- Image Sensor: 1/3.8 Type Color CMOS Image sensor, aspect ratio 4:3
- Effective Number of Pixels: 1280(horizontal) x 960(vertical) approximately 1.23 Mega pixels
- Lens: Focal Length: f=0.89mm
- Lens: Brightness: F=2.8
- Angle of Field: Horizontal = 186° , Vertical = 144°
- S/N Ratio: 40 db or more
- Resolution (Horizontal. Center Area): 300 TV Lines
- Operating Temperature: -30°C - +80°C
- Illumination Range: 2.0lx or more (50 IRE or more)
