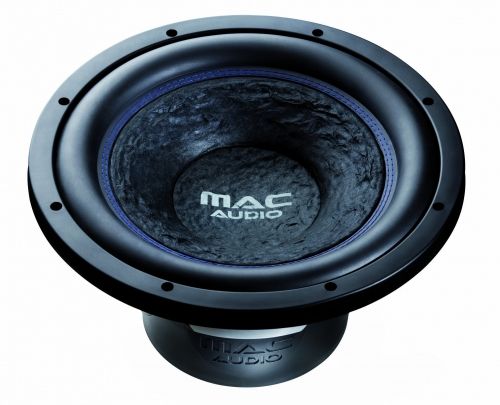

Select 12

Principle  DIN-Ø 12”
Power handling RMS/max. 500 / 1,200 watts
Impedance 2 x 4 ohms
Frequency response 20 - 500 Hz
Sound pressure level 89 dB
Outer diameter 318 mm
Cutting out 274 mm
Installation depth 155 mm
Fs 32 Hz
Qes 0,44
Qms 8,2
Qts 0,4
Vas 45 L
Xmax 20 mm
Rdc 2 x 3,9 Ohm(s)
Basket material Aluminium die cast
Cone material Multi-layer pressed and
air-dried paper cone

H i g h l i g h t s

Subwoofer for sealed and bass reflex cabinets
Solid aluminium die-cast basket with diamond cut
Double-sewed long-throw surround
2.5” high power double voice coil
Double magnet system
Chrome-plated pole plate

Recommended enclosures:
sealed enclosure: 30 litre
bass reflex enclosure: 53 litre / 1 reflex port, diametre 10 cm, length 30 cm
Litre recommendations including speaker and reflex port
