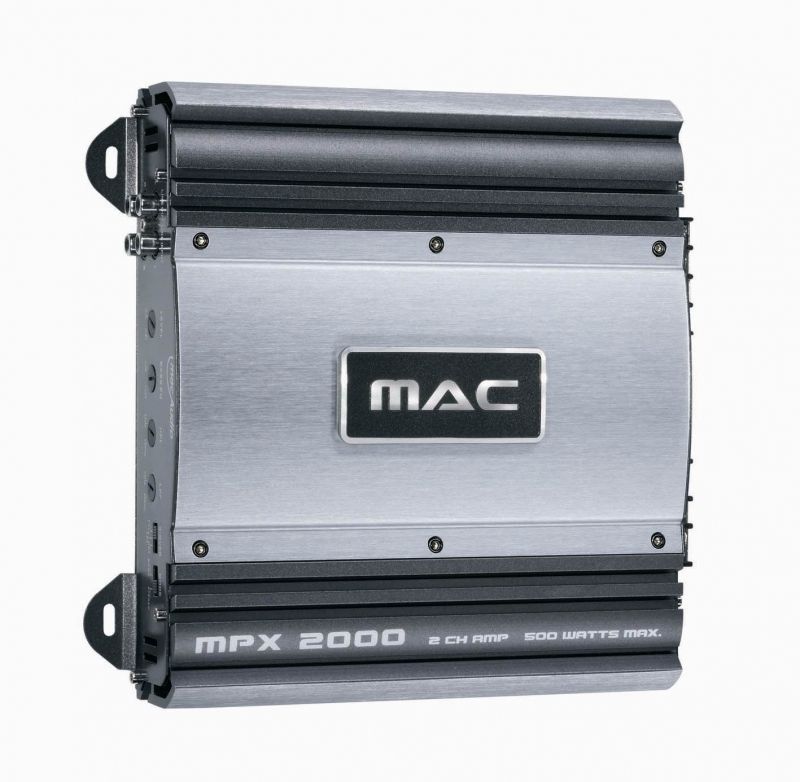

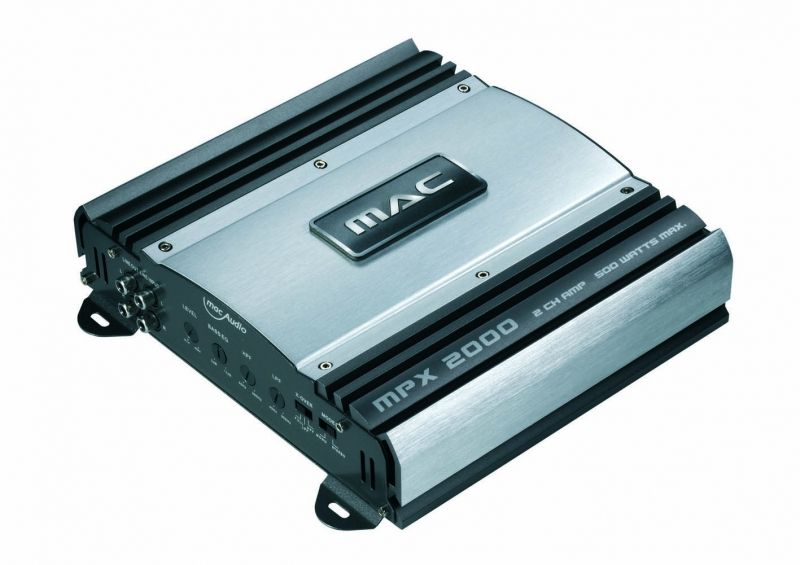

Mac Audio MPX 2000
Max. power into 4 ohms: 2 x 180W / 1 x 500 W
RMS power into 4 ohms: 2 x 60W / 1 x 160 W
Max. power into 2 ohms: 2 x 250 W
RMS power into 2 ohms: 2 x 80 W
- Brand: Mac Audio
Max. power output (sine burst 2:8, 1 kHz) into 4 ohms , 14.4V 2 x 180 / 1 x 500 W
RMS power output (DIN 45 324) into 4 ohms, 14.4V 2 x 60/1 x 160 W
Max. power output (sine burst 2:8, 1 kHz) into 2 ohms, 14.4 V 2 x 250 W
RMS power output (DIN 45 324) into 2 ohms, 14.4V 2 x 80 W
Frequency response 5 Hz – 50 kHz (-3 dB)
THD < 0,05 % (1 kHz)
Signal-to-noise ratio (A-weighted) > 100 dB
Input sensitivity 0.4 – 4 V
Input impedance 20 kOhms
Power supply 12 V negative ground
Dimensions (W x H x D) 239 x 59 x 226 mm
Weight 1,9 kg
• 2 ohm stable
• Protection circuit that safeguards against short
circuits, DC-offset and overheating
• Green operation and red protection indication
LED
• Variable low pass 40 – 300 Hz (12 dB/Octave)
• Variable high pass 40 – 300 Hz (12 dB/Octave)
• Variable bass boost 0…12 dB at 45 Hz
• Bridge mode capability
• MONO / STEREO-switch
-
Maximum Output Power:180 W
-
RMS Power per channel at 2 ohm:80 W
-
RMS Power per channel at 4 ohm:60
-
Built-in filters:
-
Minimum Impedance:2 Ohm Ohm
-
General Features:Preamp outputs
