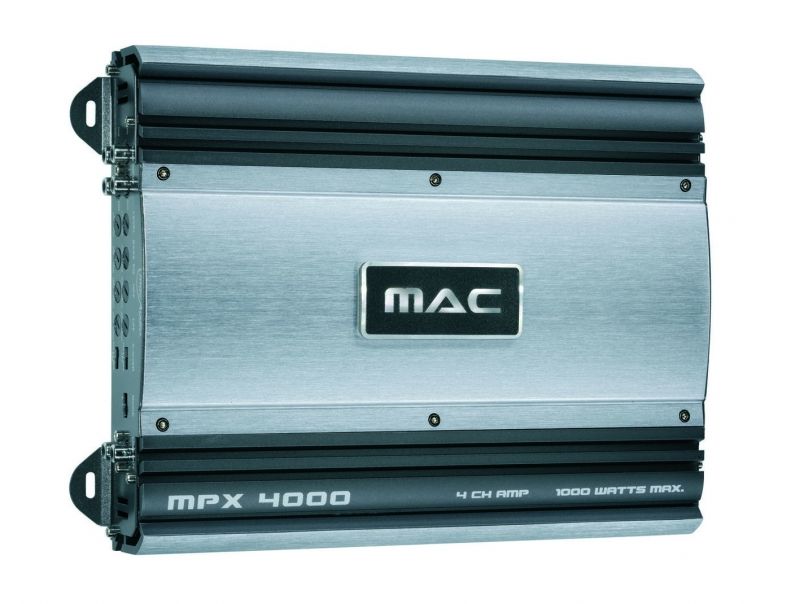

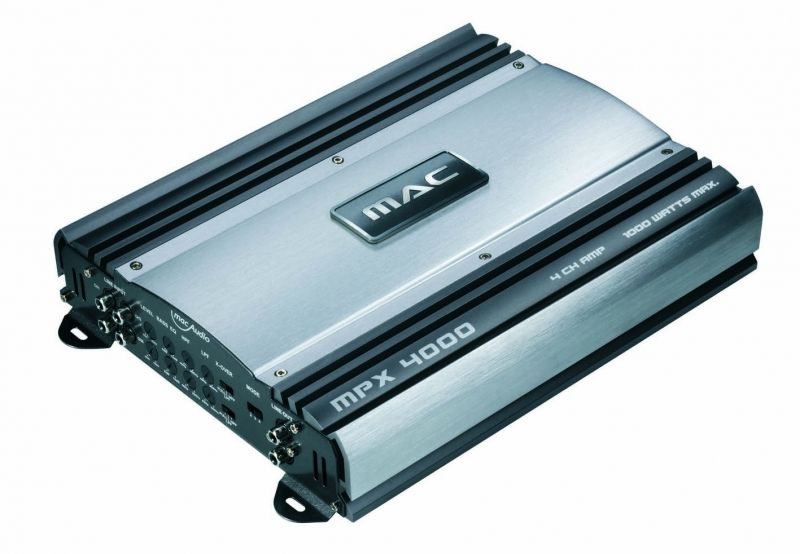

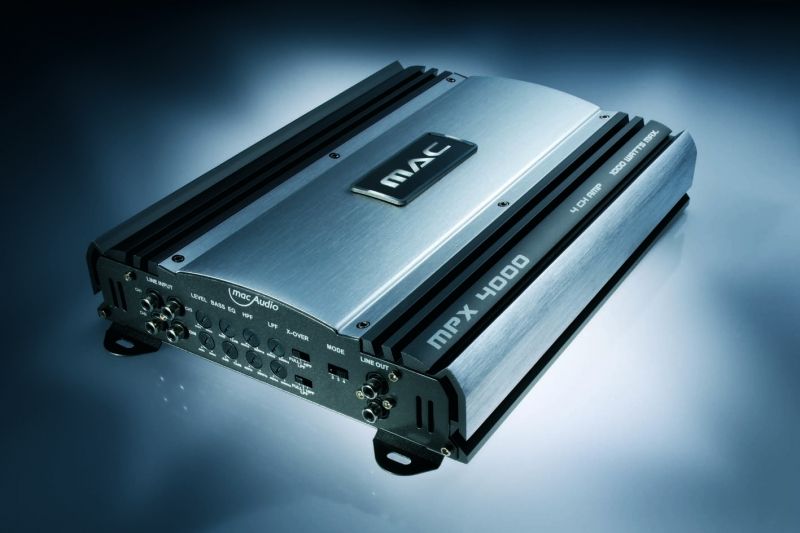

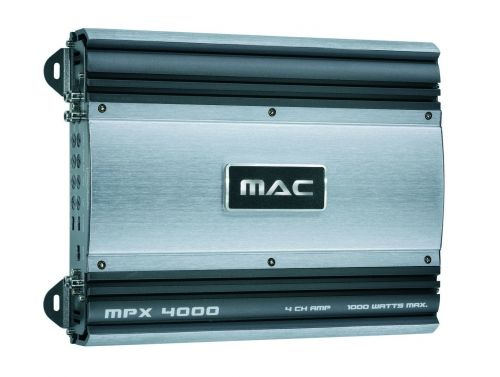

Mac Audio MPX 4000
Max. power into 4 ohms: 4 x 180W / 2 x 500 W
RMS power into 4 ohms: 4 x 60W / 2 x 160 W
Max. power into 2 ohms: 4 x 250 W
RMS power into 2 ohms: 4 x 80 W
- Brand: Mac Audio
Quick Buy
S p e c i f i c a t i o n s
Max. power output (sine burst 2:8, 1 kHz) into 4 ohms , 14.4V 4 x 180/ 2 x 500 watts
Max. power output (sine burst 2:8, 1 kHz) into 2 ohms, 14.4 V 4 x 250 watts
RMS power output (DIN 45 324) into 4 ohms, 14.4 V 4 x 60/ 2 x 160 watts
RMS power output (DIN 45 324) into 2 ohms, 14.4V 4 x 80 watts
Frequency response 5 – 50 kHz (-3 dB)
THD < 0.05 % (1 kHz)
Signal-to-noise ratio (A-weighted) > 100 dB
Input sensitivity 0,4 – 4 V
Input impedance 20 kOhms
Power supply 12 V negative ground
Dimensions (W x H x D) 319 x 59 x 226 mm
Weight 2.75 kg
H i g h l i g h t s
2 ohm stable
Variable low pass 40 – 300 Hz (12 dB per octave)
Variable high pass 40 – 300 Hz (12 dB per octave)
Variable bass boost 0...12 dB at 45 Hz
Low level RCA outputs (Mono signal CH3 / CH4)
Channel mode switch 4/3/2
Bridge- / Tri-mode capability
Protection circuit that safeguards against short circuits,
DC-offset and overheating
Green operation and red protection indication LED
-
Maximum Output Power:180 W
-
RMS Power per channel at 2 ohm:80 W
-
RMS Power per channel at 4 ohm:60
-
Built-in filters:
-
Minimum Impedance:2 Ohm Ohm
-
General Features:Preamp outputs
