HAMR Surround
The High Amplitude Multi-Roll (HAMR) surround allows a maxi- mum, linear cone excursion for high SPL, while maintaining full control over the diaphragm at any excursion stage for high sound clarity.
Great Installability

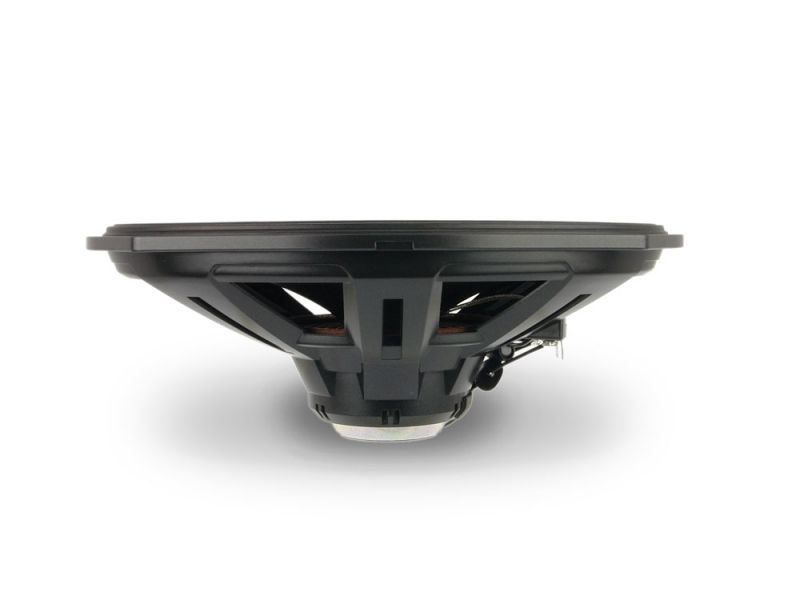

Alpine uses high-power neodymium magnets for the new R-Series speakers. This means the magnet can be much smaller compared to traditional speaker designs, allowing for a much lower mounting depth and overall space requirement inside the car door.


Outstanding Clarity
The all-new voice coil is made of Aluminium, compared to the regular copper wire coils. The benefit is higher clarity especially in the mid-high frequency area.
Swivel Tweeter
Both component and coaxial models feature a ring tweeter that swivels to improve off-axis response in less-than-ideal locations. You can aim it by hand for best imaging and staging at your listening position. The component type tweeter (R-S65C only) can be installed in flush-mount or on-dash configuration – all installation adapters are included.


Included Mesh Grill
We included a metal mesh grill to protect the woofer in open installations.
Included Trim-Rings
To allow easy installation in a wide range of vehicles, we included several trim rings and a 6 x 8” adapter.
Features
Tweeter
- 1′′ (2.5cm) Ring Radiator Tweeter
- Large Aluminium Voice Coil
- Neodymium Magnet
- Swivel Application
- Flush Mount, Surface Mount Application
Woofer
- Hybrid Multi Layer Cone
- Linear Drive Technology
- HAMR Surround
- Large Aluminium Voice Coil
- Aluminium Square Wire
- Ultra High Density Neodymium Magnet
- DX Ring
- Shallow Mounting Design
- Mounting Adapter Kit Included
-
Design:2-way
-
Max. Power:300 W
-
RMS Power:100 W
-
Sensitivity:88 dB/W/m
-
Mounting Depth:75 mm
